CODEMASON 3.0
Description
Gantry Concrete 3D Printer, Codemason 3.0 Construction Printer is designed to print various types of buildings / prefabs with mixtures based on cement, geopolymer and other materials:
– Houses / villas / hospitality buildings;
– Commercial buildings / infrastructure;
– Structural elements of multi-storied buildings;
– Non-removable formwork for monolithic structures (including foundations and ceilings);
– Prefabs of modular buildings;
– Structures for Landscaping/Recreation/City infrastructure;

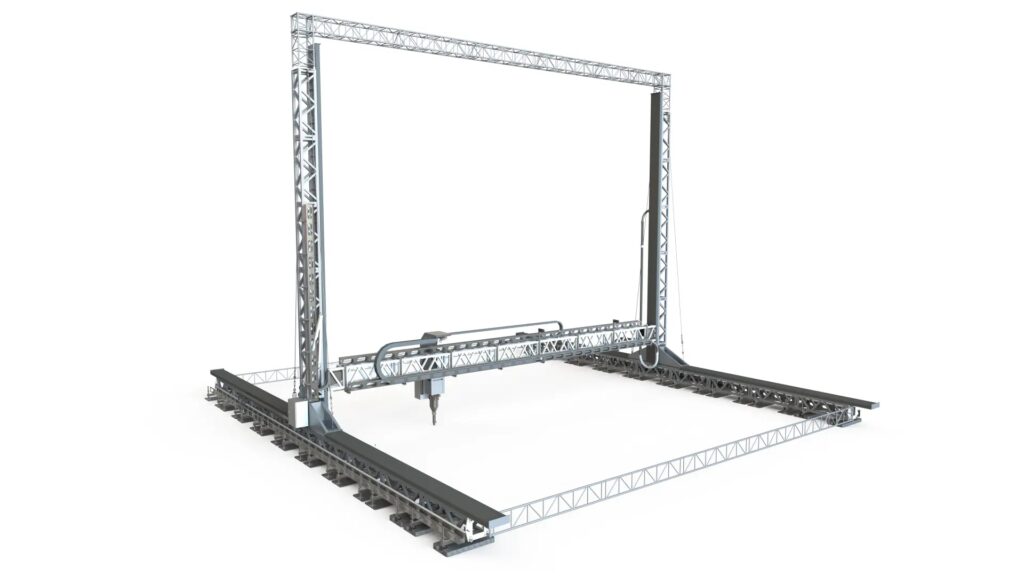

The mechanical part of our Gantry Concrete 3D Printer Codemason 3.0 is a steel-made gantry, which has movable transverse and vertical beams. The vertical beam with the print head fixed on it has the function of moving along the transverse movable beam. The mixture is supplied to the printing head by a concrete pumping station. The design is modular, which makes it possible to change the printing area according to specific properties of the printed building.
Rigid structure of the gantry along with automated control system with advanced drives ensures smooth and precise movements with high printing accuracy, surface quality and speed.
Reference videos
Codemason 2.0 in Dubai
Geopolymer printing
Codemason 2.0 in Dubai
Geopolymer printing
Advantages
1. Adjustable customized printing area (Length x Width x Height) up to 25 x 14 x 10 meters (82′ × 45.9′ × 32.8′). Length can be extended without limitations due to rail-based design of the gantry.
Baseline printing area: 15 x 10 x 8 m (49.2′ × 32.8′ × 26.25′)
2. Scalable, modular design – flexibility depending on the size of the building.

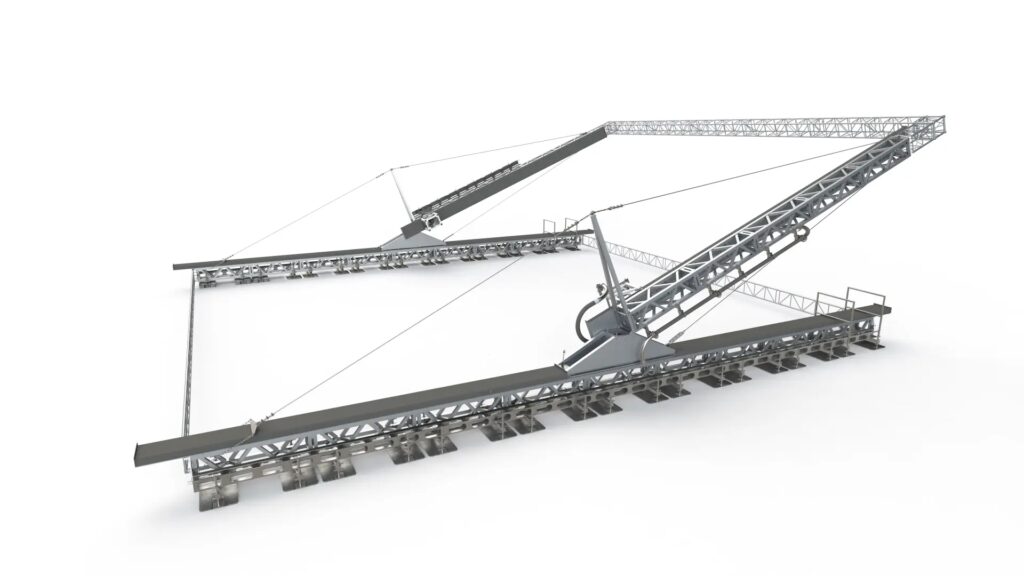

3. Fast installation and dismounting (mobility).
4. Tent option – a special modular tent can be supplied for additional protection from weather.
5. Rigidity of the gantry structure – highest accuracy, surface quality and reliable speed of printing.
6. Easy maintenance of the printhead (additional drive for raising and lowering the head, quick-release clamps, modular design for easier cleaning).
7. Ability to install Rotational nozzle with electronically retractable screeds (layer smoothing system).
8. Robust high-performance printhead design, up to 1.5 cubic meters per hour.
9. Ready to print with Ready Mix Concrete (with a special additive that improves performance, adding only a 1-2% increase to the standard market price of the Ready Mix). Geopolymer concrete options available upon request.

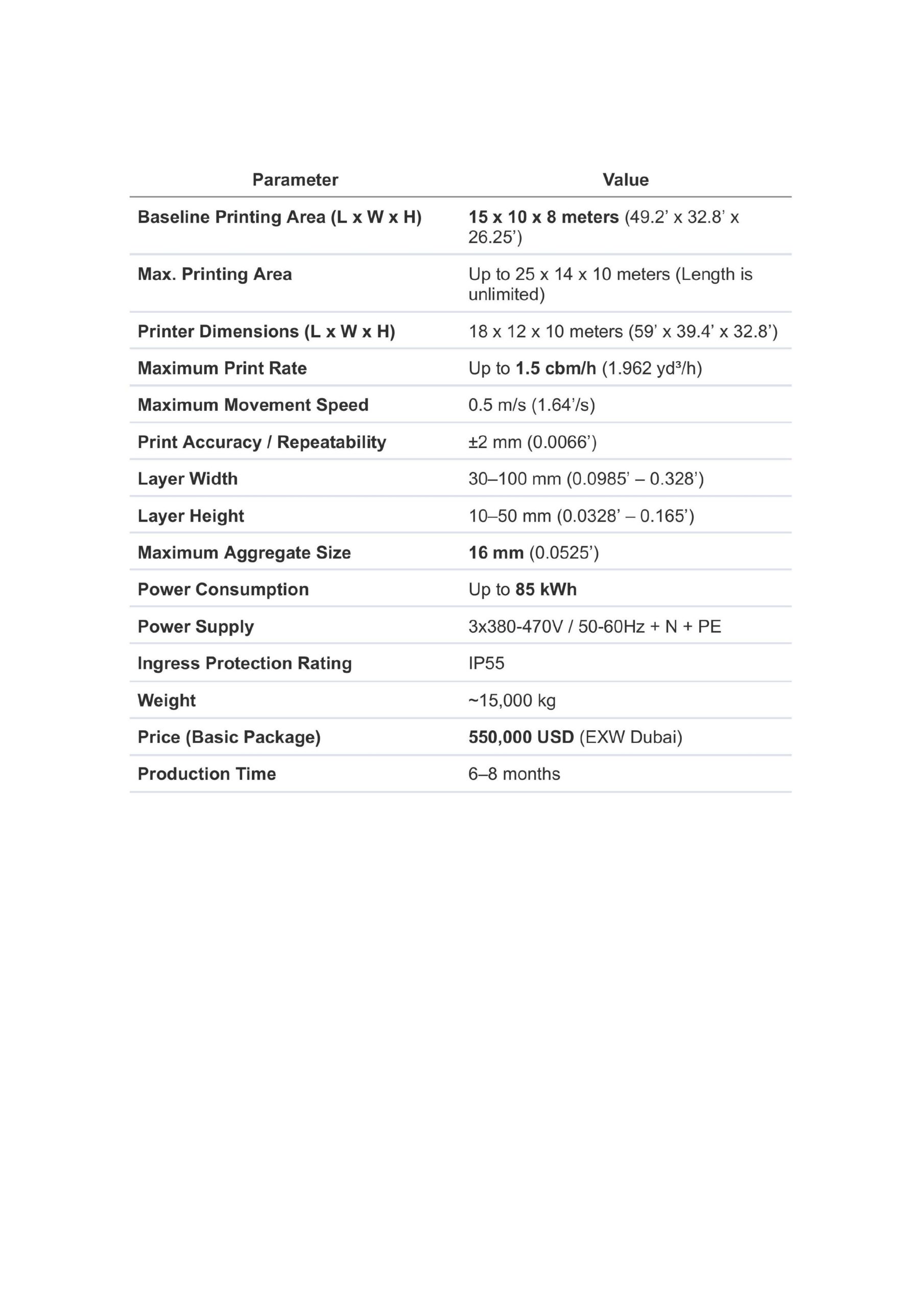

Specification - Gantry Concrete 3D Printer
Mixer/pump specifications concrete pumping station*
*Batch plant and piston pump
- Concrete pumping station for mixture delivery to the printhead - Ready Mix Concrete compatible (special additive available, +1-2% to market price) - Batch plant + piston pump for up to 16 mm aggregate — available upon request
