Codemason 3.0
The builder's dream
Scale your ambition
➜ Modular Track Gantry for Massive Footprints
➜ Prints Up To 2 Stories On-Site
➜ High Precision, Printing Speed and Surface Quality
➜ Ideal for Large-Scale Housing
AC3D’s Gantry Concrete 3D Construction Printer Codemason 3.0 is designed to print various types of buildings and prefabs with mixtures based on cement, geopolymer and other materials, including:
- Houses, villas and hotel/hospitality buildings
- Commercial buildings/infrastructure
- Structural elements of multi-storied buildings
- Non-removable formwork for monolithic structures, including foundations and ceilings
- Prefabs of modular buildings
- Structures for landscaping, recreation and city infrastructure

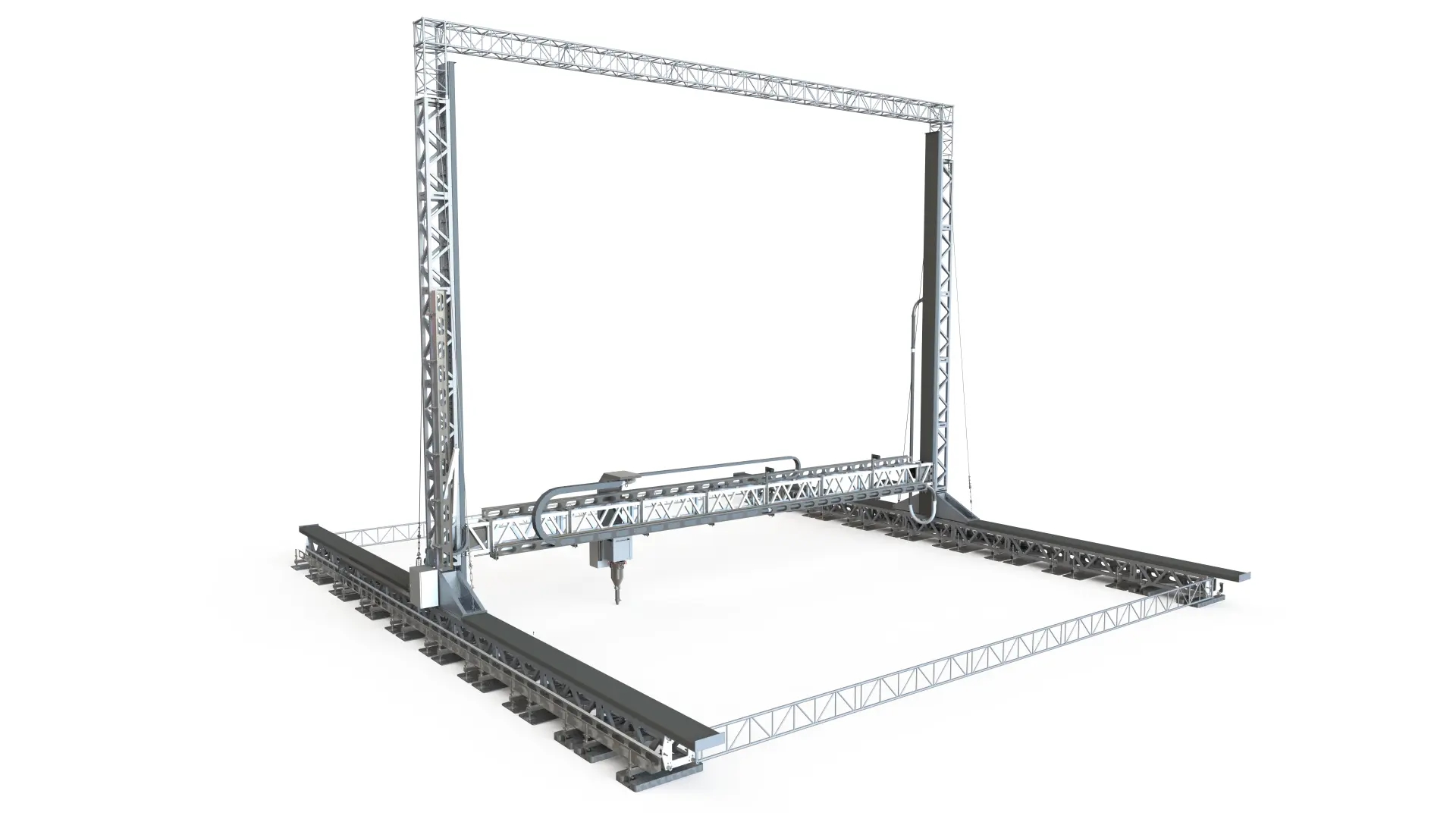

Codemason 3.0 features a steel-made gantry with movable transverse and vertical beams. The vertical beam, with a fixed print head, moves along the transverse beam. The mixture is supplied to the print head by a concrete pumping station. This modular design makes it possible to change the printing area according to the building specifications.
The gantry’s rigid structure, complemented by an automated control system with advanced drives, ensures smooth and precise movements, high printing accuracy, surface quality and speed.
Codemason 2.0 in Dubai
Geopolymer printing
Codemason 2.0 in Dubai
Geopolymer printing
Codemason 3.O in action
Why choose codemason 3.0
- Adjustable customized printing area (Length x Width x Height) up to 25 x 14 x 10 meters (82′ × 45.9′ × 32.8′). Length can be extended without limitations due to rail-based design of the gantry. Baseline printing area: 15 x 10 x 8 m (49.2′ × 32.8′ × 26.25′).
- Scalable, modular design – flexibility depending on the size of the building.

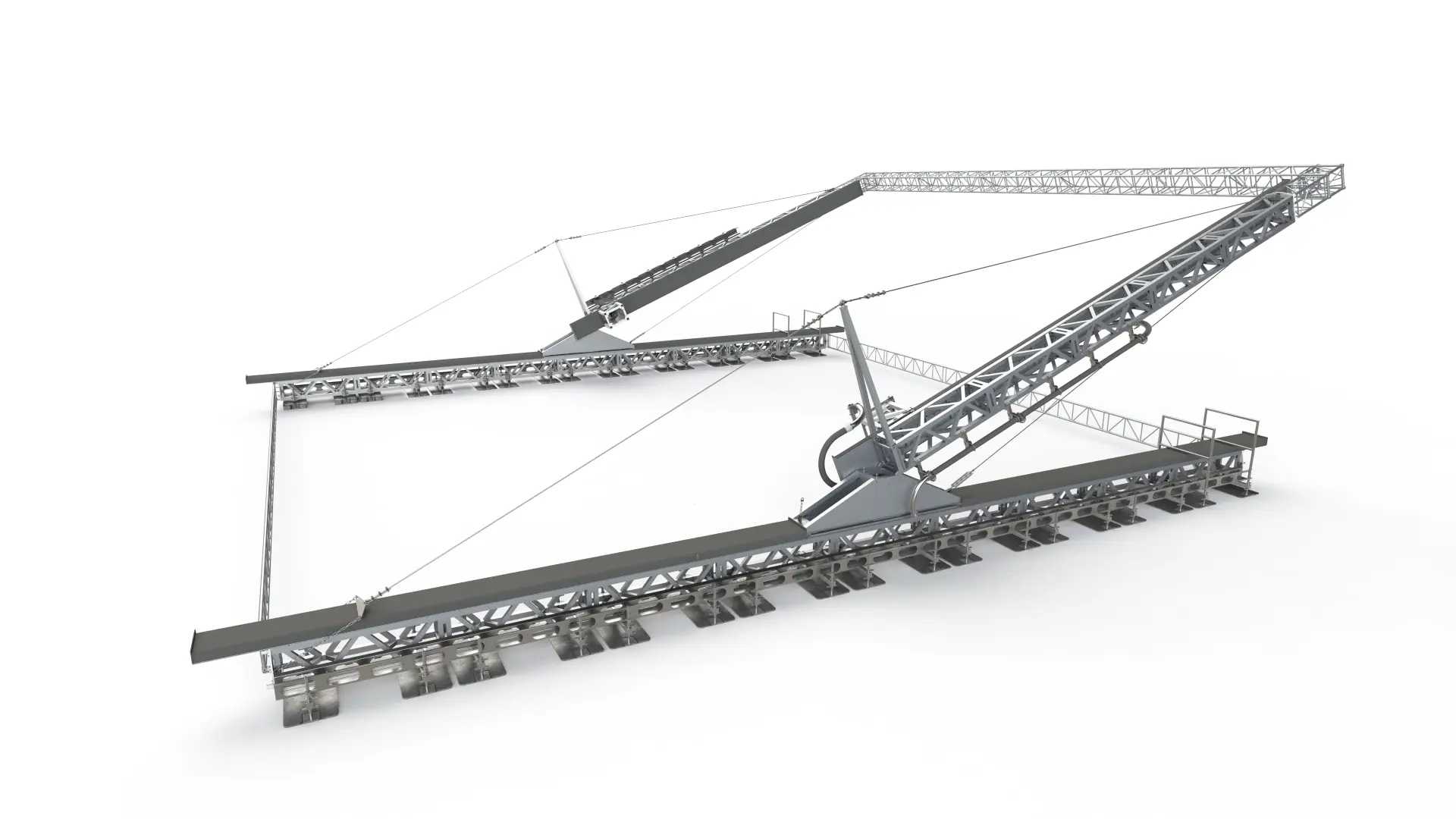

- Fast installation and dismounting (mobility).
- Tent option – a special modular tent can be supplied for additional protection from weather.
- Rigidity of the gantry structure – highest accuracy, surface quality and reliable speed of printing.
- Easy maintenance of the printhead (additional drive for raising and lowering the head, quick-release clamps, modular design for easier cleaning).
- Ability to install a rotational nozzle with electronically retractable screeds (layer smoothing system).
- Robust high-performance printhead design, up to 1.5 cubic meters per hour.
- Ready to print with Ready Mix Concrete – a special additive that improves performance, adding only 1-2% increase to the standard market price of the ready mix (Geopolymer concrete options available upon request).

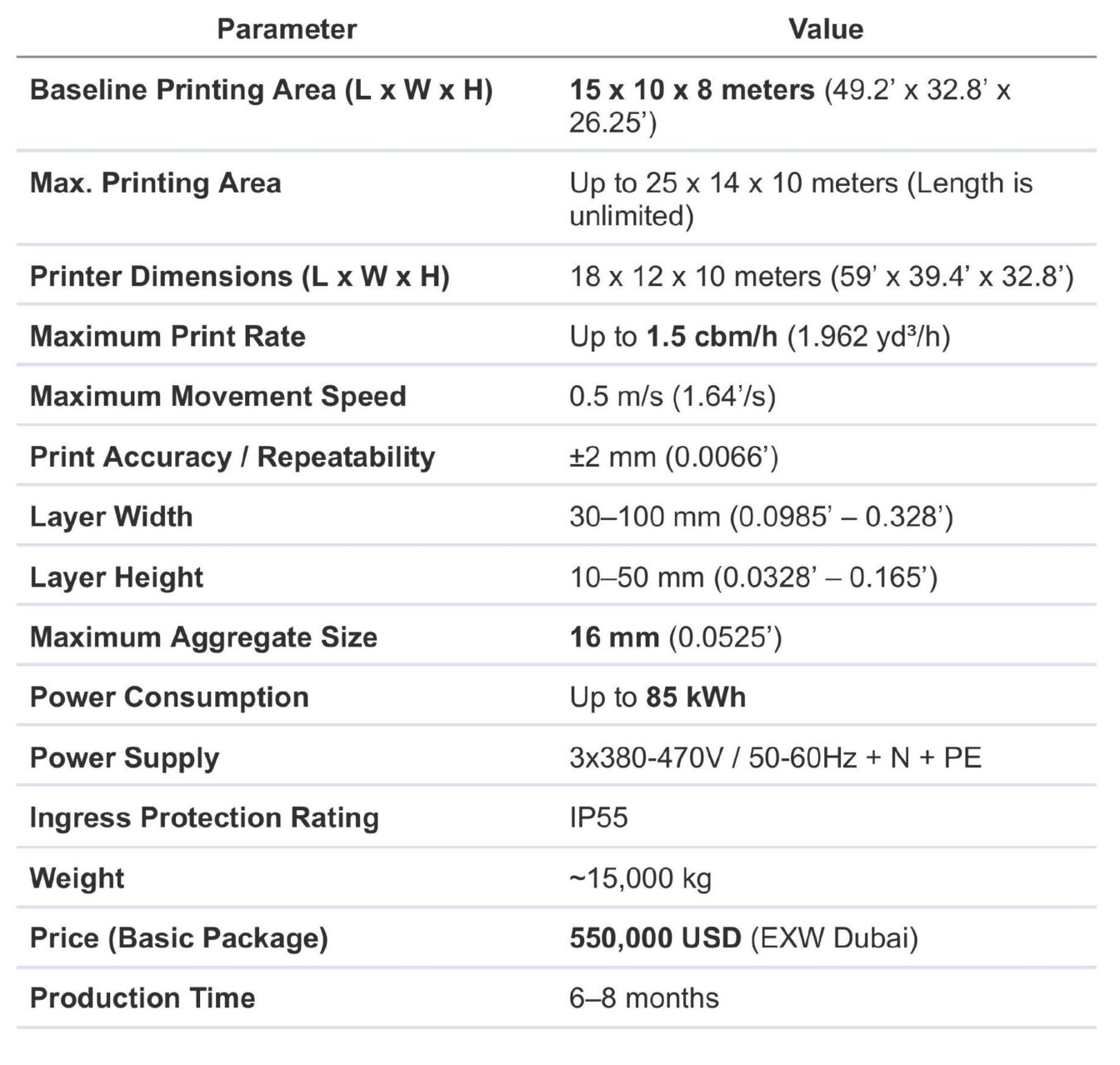

Codemason 3.0 printer specifications
Mixer/pump specifications: concrete pumping station (batch plant and piston pump)
- Concrete pumping station for mixture delivery to the printhead
- Ready Mix Concrete compatible (special additive available, +1-2% to market price)
- Batch plant + piston pump for up to 16 mm aggregate — available upon request
